Obstacle Generator

The obstacle generator (Reffered to as the 'LevelGenerator' in the code), is responsible for the creating and saving of obstacles that would appear while playing the game; however, the generator itself doesn't create obstacles, but simply saves all the objects within the editor to a given obstacle ScriptableObject.

It can do the following:

​

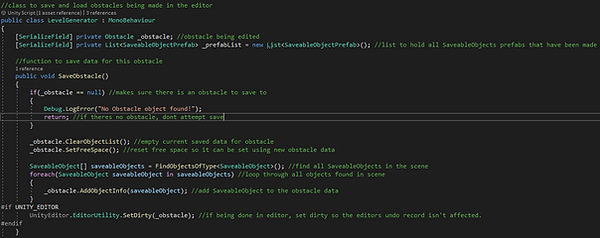

  • Save an obstacle

    • Saves the positions of all saveable objects currently on screen, and within the given bounds of the obstacle grid. This information is saved to an 'Obstacle Scriptable Object'. ​

    • Also saves information of all spaces within the bounds of the grid that don't contain an object, so that a collectable may be spawned their during gameplay.

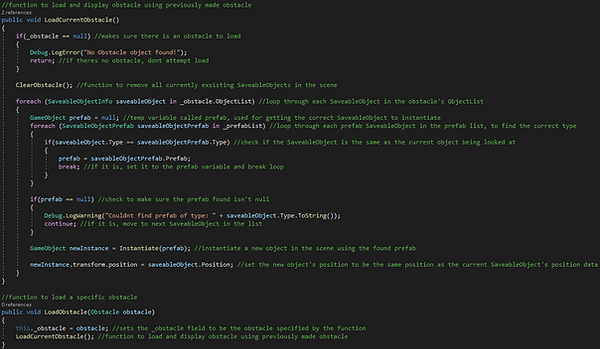

  • Load an Obstacle

    • Loads all objects from a previously saved 'Obstacle Scriptable Object', so that it may be viewed and edited.​

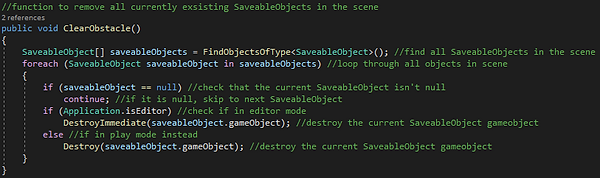

  • Clear an Obstacle

    • Destroys all the saveable objects currently existing in the editor scene.​

Obstacle Generator Code

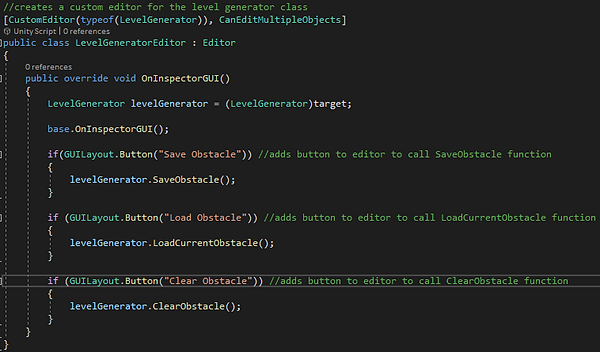

Obstacle Generator Editor Code


Obstacle Code

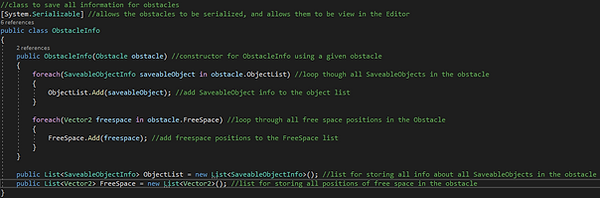

Obstacle Info Code

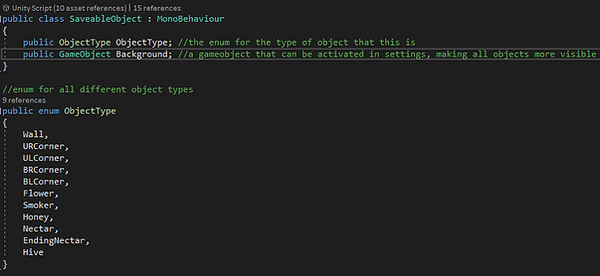

Saveable Object Code

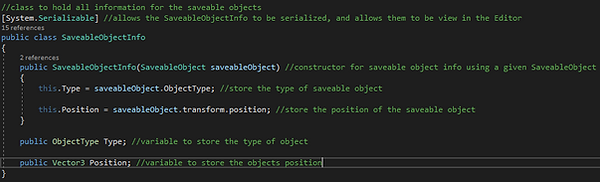

Saveable Object Info Code

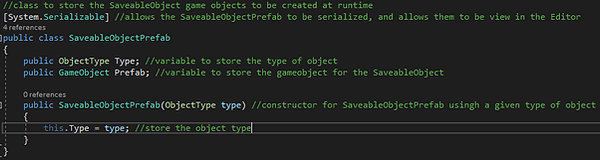

Saveable Object Prefab Code
